6、FIR结构程序策划

module top (    input  wire   clk,    input  wire   rst_n);//Registers Declarationsreg  [9:0]   addr_1;reg  [9:0]   addr_2;reg  [14:0]  data_sum;reg  [14:0]  delay_pipeline1  ;reg  [14:0]  delay_pipeline2  ;reg  [14:0]  delay_pipeline3  ;reg  [14:0]  delay_pipeline4  ;reg  [14:0]  delay_pipeline5  ;reg  [14:0]  delay_pipeline6  ;reg  [14:0]  delay_pipeline7  ;reg  [14:0]  delay_pipeline8  ;reg  [14:0]  delay_pipeline9  ;reg  [14:0]  delay_pipeline10 ;reg  [14:0]  delay_pipeline11 ;reg  [14:0]  delay_pipeline12 ;reg  [14:0]  delay_pipeline13 ;reg  [14:0]  delay_pipeline14 ;reg  [14:0]  delay_pipeline15 ;reg  [14:0]  delay_pipeline16 ;reg  [14:0]  delay_pipeline17 ;reg signed [22:0] multi_data1 ;//乘积结杲reg signed [22:0] multi_data2 ;reg signed [22:0] multi_data3 ;reg signed [22:0] multi_data4 ;reg signed [22:0] multi_data5 ;reg signed [22:0] multi_data6 ;reg signed [22:0] multi_data7 ;reg signed [22:0] multi_data8 ;reg signed [22:0] multi_data9 ;reg signed [22:0] multi_data10 ;reg signed [22:0] multi_data11 ;reg signed [22:0] multi_data12 ;reg signed [22:0] multi_data13 ;reg signed [22:0] multi_data14 ;reg signed [22:0] multi_data15 ;reg signed [22:0] multi_data16 ;reg signed [22:0] multi_data17 ;reg signed [22:0] FIR_OUT; //---Wiredsignaldeclarationwire [13:0] data_1;wire [13:0] data_2;wire[7:0] coeff1  = 8d86;  //滤波器指数wire[7:0] coeff2  = 8d5;wire[7:0] coeff3  = 8d6;wire[7:0] coeff4  = 8d6;wire[7:0] coeff5  = 8d6;wire[7:0] coeff6  = 8d6;wire[7:0] coeff7  = 8d6;wire[7:0] coeff8  = 8d6;wire[7:0] coeff9  = 8d6;wire[7:0] coeff10 = 8d6;wire[7:0] coeff11 = 8d6;wire[7:0] coeff12 = 8d6;wire[7:0] coeff13 = 8d6;wire[7:0] coeff14 = 8d6;wire[7:0] coeff15 = 8d6;wire[7:0] coeff16 = 8d5;wire[7:0] coeff17 = 8d86; always @ (posedge clk or negedge rst_n) begin    if (!rst_n)       begin           addr_1 <=  10d0;           addr_2 <=  10d0;       end    else       begin           addr_1 <=  addr_1+10d41;    //2m           addr_2 <=  addr_2+10d20;    //1m       endend always @ (posedge clk or negedge rst_n) begin    if (!rst_n)       data_sum   <=  15d0;    else       data_sum   <=  data_1 +   data_2;end always @ (posedge clk or negedge rst_n) begin    if (!rst_n)     begin       delay_pipeline1  <=  15d0;       delay_pipeline2  <=  15d0;       delay_pipeline3  <=  15d0;       delay_pipeline4  <=  15d0;       delay_pipeline5  <=  15d0;       delay_pipeline6  <=  15d0;       delay_pipeline7  <=  15d0;       delay_pipeline8  <=  15d0;       delay_pipeline9  <=  15d0;       delay_pipeline10 <=  15d0;       delay_pipeline11 <=  15d0;       delay_pipeline12 <=  15d0;       delay_pipeline13 <=  15d0;       delay_pipeline14 <=  15d0;       delay_pipeline15 <=  15d0;       delay_pipeline16 <=  15d0;       delay_pipeline17 <=  15d0;     end    else     begin       delay_pipeline1  <=  data_sum;       delay_pipeline2  <=  delay_pipeline1;       delay_pipeline3  <=  delay_pipeline2;       delay_pipeline4  <=  delay_pipeline3;           delay_pipeline5  <=  delay_pipeline4;           delay_pipeline6  <=  delay_pipeline5;           delay_pipeline7  <=  delay_pipeline6;           delay_pipeline8  <=  delay_pipeline7;           delay_pipeline9  <=  delay_pipeline8;           delay_pipeline10 <=  delay_pipeline9;           delay_pipeline11 <=  delay_pipeline10;          delay_pipeline12 <=  delay_pipeline11;          delay_pipeline13 <=  delay_pipeline12;          delay_pipeline14 <=  delay_pipeline13;          delay_pipeline15 <=  delay_pipeline14;          delay_pipeline16 <=  delay_pipeline15;          delay_pipeline17 <=  delay_pipeline16;        end                   end always @ (posedge clk or negedge rst_n) begin    if (!rst_n)     begin       multi_data1  <=  23d0;//乘积数据       multi_data2  <=  23d0;       multi_data3  <=  23d0;       multi_data4  <=  23d0;       multi_data5  <=  23d0;       multi_data6  <=  23d0;       multi_data7  <=  23d0;       multi_data8  <=  23d0;       multi_data9  <=  23d0;       multi_data10 <=  23d0;       multi_data11 <=  23d0;       multi_data12 <=  23d0;       multi_data13 <=  23d0;       multi_data14 <=  23d0;       multi_data15 <=  23d0;       multi_data16 <=  23d0;       multi_data17 <=  23d0;     end    else     begin       multi_data1  <=  delay_pipeline1      coeff1;//乘积然而       multi_data2  <=  delay_pipeline2      coeff2;       multi_data3  <=  delay_pipeline3      coeff3;       multi_data4  <=  delay_pipeline4      coeff4;       multi_data5  <=  delay_pipeline5      coeff5;       multi_data6  <=  delay_pipeline6      coeff6;       multi_data7  <=  delay_pipeline7      coeff7;       multi_data8  <=  delay_pipeline8      coeff8;       multi_data9  <=  delay_pipeline9      coeff9;       multi_data10 <=  delay_pipeline10     coeff10;       multi_data11 <=  delay_pipeline11     coeff11;       multi_data12 <=  delay_pipeline12     coeff12;       multi_data13 <=  delay_pipeline13     coeff13;       multi_data14 <=  delay_pipeline14     coeff14;       multi_data15 <=  delay_pipeline15     coeff15;       multi_data16 <=  delay_pipeline16     coeff16;       multi_data17 <=  delay_pipeline17     coeff17;     endend always @ (posedge clk or negedge rst_n) begin    if (!rst_n)       FIR_OUT    <=  23d0;    else       FIR_OUT    <=  multi_data1+multi_data2+multi_data3+multi_data4+multi_data5+multi_data6+multi_data7       +multi_data8+multi_data9+multi_data10+multi_data11+multi_data12+multi_data13+multi_data14+multi_data15       +multi_data16+multi_data17;end rom_1 u_rom_1(    .address      (addr_1       ),    .clock        (clk          ),    .q            (data_1       )    ); rom_1 u_rom_2(    .address      (addr_2       ),    .clock         (clk          ),    .q            (data_2       )    ); endmodule

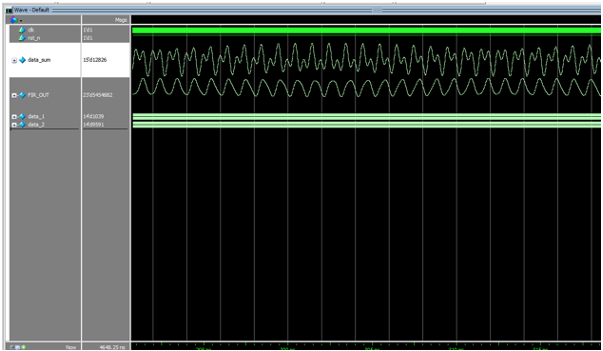

模型仿真报告： FIR_OUT 为(wei)滤波后的(de)效(xiao)果。

7、FIR IP核使用

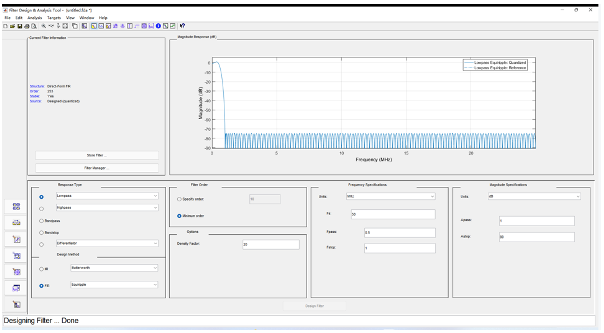

1 ： 采集IP核的形态做好滤波研究,需用施用MATLAB选配参数指标，以MIF文件格式的文档文件置放到IP中通过选配。

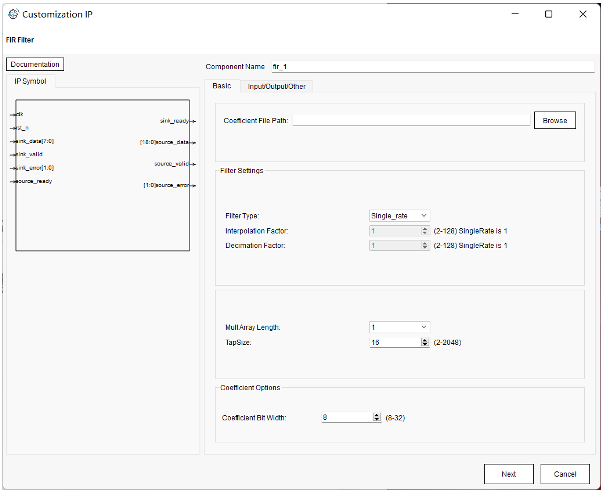

Docunmentation : FIR的IP核使拿手册.Coefficient File Path : 处理分配后的MIFword文件。

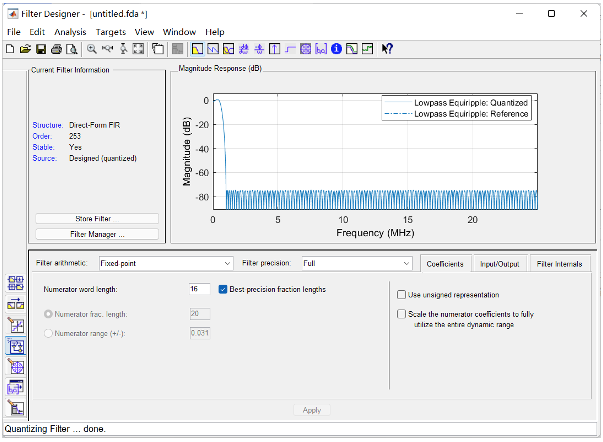

正因为 可c语言编程逻辑推理单片机芯片 并不支撑架浮点数的运算，于是说必须 对抽头指数进行明确生产加工,在 Filter arithmetic 中选择 Fixed-point， Number word length 中可以显示的是字长，当显示 8 时，点击量 Apply，能看出到有过大的差别。于是说将结果变成 16。

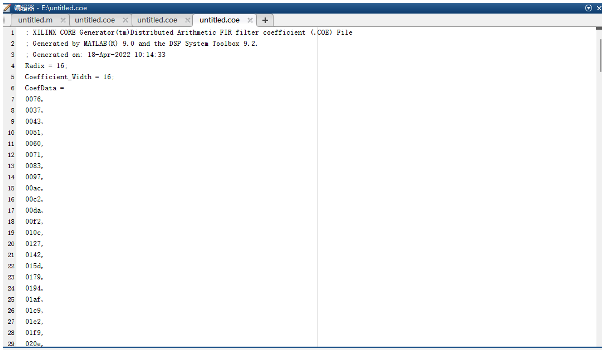

导进须得配值的数据库 :

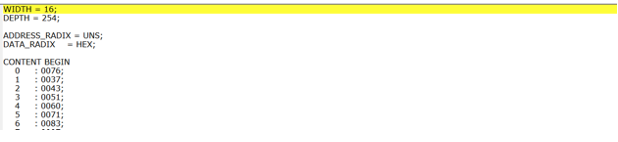

将的数据word文件设置成.MIFword文件图片格式,给以eLinx軟件选用。

此地存贮空间为第十五进制信息,如果并非是愿意第十五进制,强列推荐使用二进制完成存贮空间。

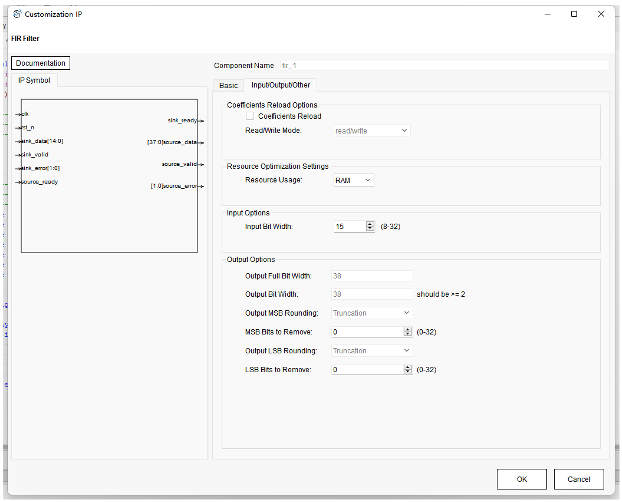

IP核配置页面 :

测查步骤：

module fir_top(       input       wire clk,       input       wire rst_n    );//---- Registers Declarations ----reg  [9:0]     addr_1;reg  [9:0]     addr_2;reg  [14:0] data_sum;//--------Wired signal declaration --------wire                   sink_ready;wire                   sink_valid;wire     [37:0]         source_data;wire                   source_ready;wire                   source_valid;wire        [13:0]         data_1;wire        [13:0]         data_2;  assign sink_valid    =     sink_ready;always @ (posedge clk or negedge rst_n) begin       if (!rst_n)              begin                     addr_1    <=   10d0;                     addr_2    <=   10d0;              end       else if (sink_ready)              begin                     addr_1    <=   addr_1+10d10;    //0.5m                     addr_2    <=   addr_2+10d20;    //1m              endend      always @ (posedge clk or negedge rst_n) begin       if (!rst_n)              data_sum <=   15d0;       else              data_sum <=   data_1     +     data_2;end m4k_1 u_rom_1(       .address          (addr_1          ),       .clock             (clk                ),       .q                  (data_1           )       ); m4k_1 u_rom_2(       .address          (addr_2          ),       .clock             (clk                ),       .q                  (data_2           )       );      fir_1 u_fir_1(       .clk                       (clk                ),//加以给 FIR 滤波器的内部寄存器提 供钟表移动信号       .rst_n                    (rst_n             ),//低有效回位无线无线信号。在钟表持续增长沿 回位 FIR 滤波器。无线无线信号至少持续一 个钟表生长期       .sink_data              (data_sum      ),//键盘输入采样系统数据信息       .sink_ready            (sink_ready    ),//当滤波器提供好收数据源的时 候，FIR 滤波器会拉高此4g信号       .sink_valid             (sink_valid     ),//要进入动态数据的时会，一起拉高这 个信号。       .sink_error             (),//搜索系统错误表现可不可以屏蔽       .source_data          (source_data   ),//滤波器所在。大数据位宽由因素设 置判断       .source_ready        (1b1              ),//水流生产模试下，滤波器注意好 吸收数值的的时候，拉高你这个数据       .source_valid         (source_valid),//当要输出的数据源的时，FIR 滤波器 拉高整个电磁波       .source_error         ()//模拟输出不对的信号可能忽视       );      Endmodule

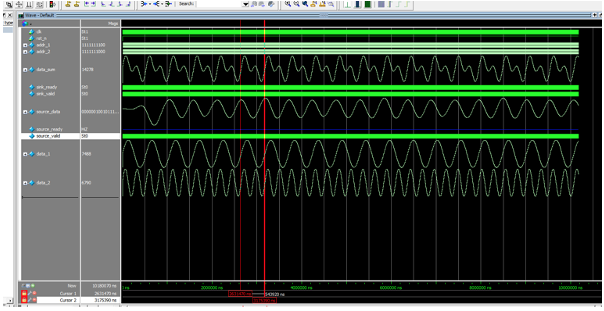

8、仿真验证
